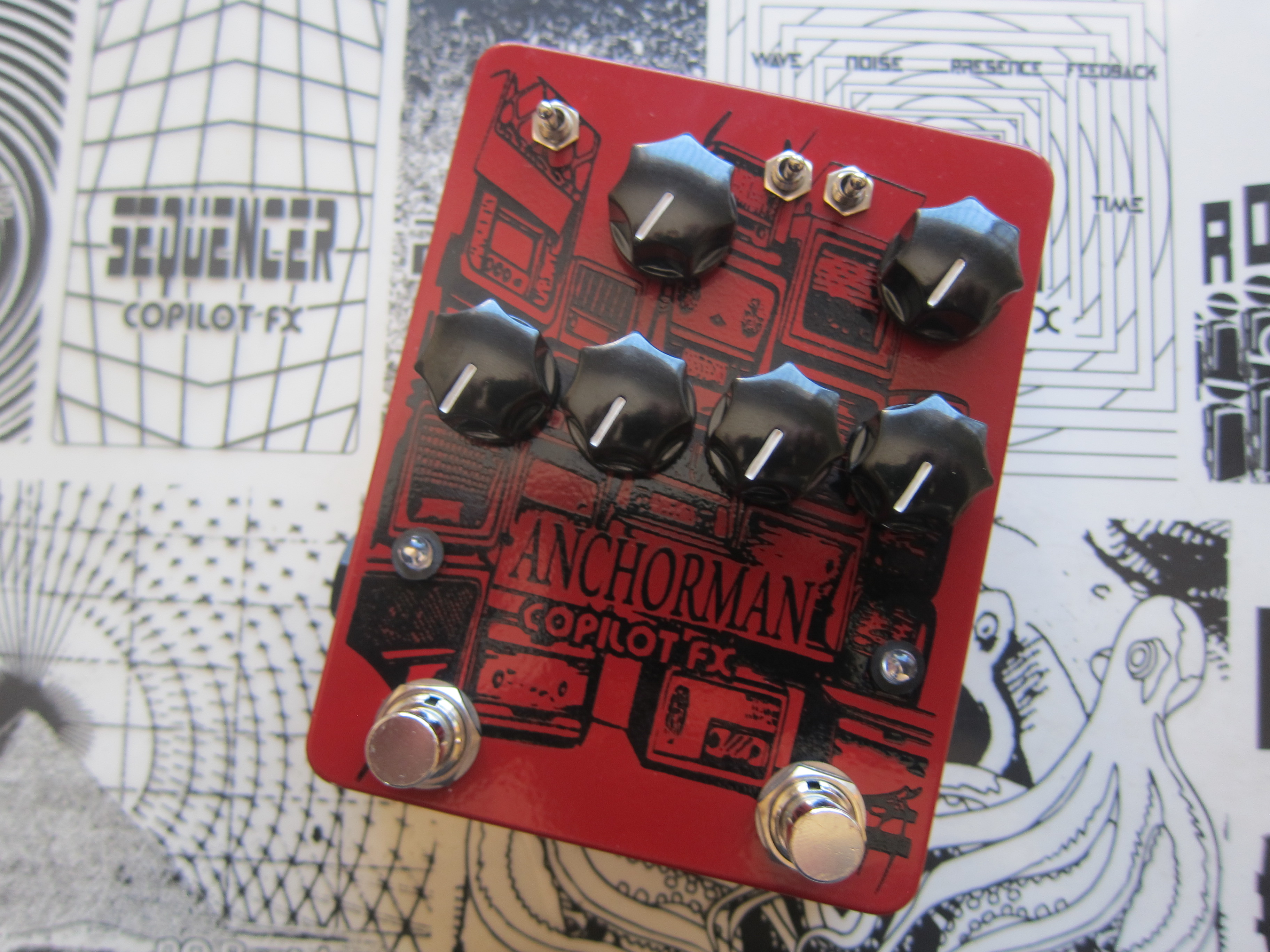

Anchorman allows you to mix/add FM radio broadcasts to your signal.
The fm tuning (station to be played) can be selected via a knob or via trs expression or 0-5v cv signal. It also allows controlling the vol amount of the fm with the exp/cv jack (assignable via toggle). There is an oscillation footswitch to mangle/process the radio signal (triggered by the instrument) so you can censor or destroy the content in real time. The trigger also allows having the option to mute the signal when you play (so radio plays when you aren't playing) or the reverse (radio plays when you play)
Trigger toggle: Selects if the radio signal is activated when there's signal at the input (stops when the signal ceases) or there will only be radio when there's no signal at the input.
Source Toggle: Selects if the trigger toggle or external expression is activated (up) or not (down)
FM tune toggle: Up the tune is controlled via the expression jack, down by the knob.
Osc Frequency: Sets the pitch of the oscillator.
FM tune: Selects the station, range is 87mhz to 105mhz .
Sensitivity: Trigger threshold control. Dry: Sets the volume for input signal.
FM tone: Reduce the high end of the radio signal .
FM vol: Sets the volume of the radio signal.
Silk Screened artwork with epoxy ink into a powder coated aluminium case
Dimensions: 4.7" x 3.7" x 2 1/2"
Powered only by DC 9v power Jack (center negative), no batteries option
Expression Jack: external control of the pulse width, TRS expression jack or 0-5v CV. Compatible with the Broadcast, Broadband and Bandwidth
