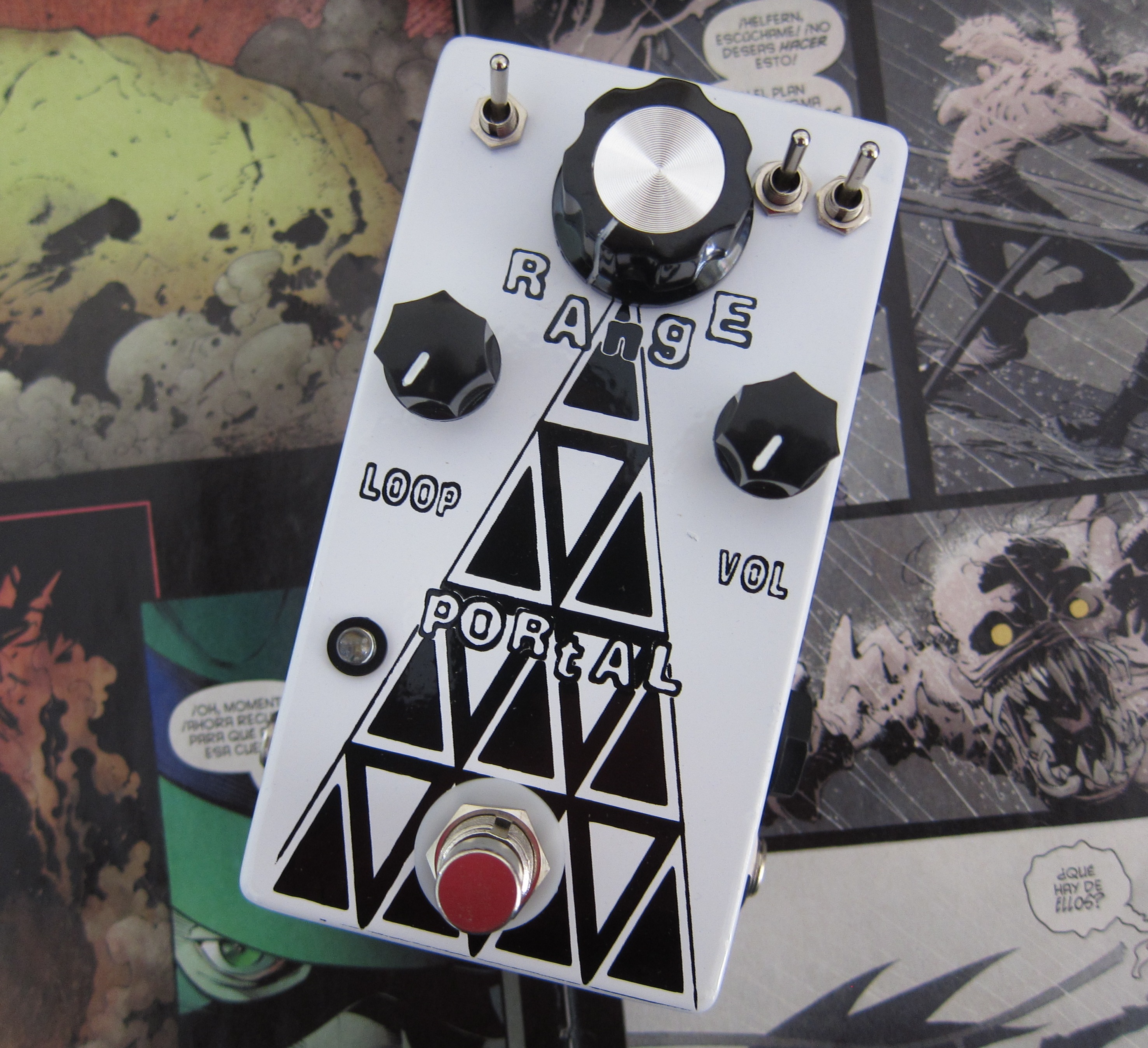

Copilot Fx Portal is a mixer / blender pedal / fx loop, giving the user the option to mix / blend the signal inside the loop (send / return jacks on top) with the signal coming in (dry), both signal paths have Their respective volume knobs (vol for the dry and loop for the fx loop), the range knob controls the amount of mix, at 0 (7:00) only the dry will be present, increasing the knob clockwise will start adding more signal from the loop until it gets full wet.
The range/mix can also be controlled via a TRS expression pedal (it won’t matter the pot value) or 0-5v CV signals, adding functionality and range to other pedals and sonic possibilities.
The volume in the fx loop is post loop, so it won’t clip/saturate the units inside. You can also only connect to the return jack on the loop, in case you want to mix/add radio signals, samplers, noise/bleep boxes / other instruments or want to add the unused stereo jacks on some pedals.
LOOP Jacks on top
Range: Mix Control.
Vol: Amount of volume of the dry/input signal.
Loop: Amount of volume of the loop.
Right Toggles:
Loop toggle: when this toggle is up the loop will be synced to the range/exp, down the loop will only react to the loop knob.
Dry toggle: when this toggle is up the dry will be synced to the range/exp, down the loop will only react to the vol knob.
Left Toggle:
Phase: It will change the phase of the loop signal.
Exp / CV Jack: external control of the rate via TRS expression pedal or 0-5v cv signal.
Silk Screened artwork with enamel ink into a powder coated aluminium case
Dimensions: 4.5" x 2 1/2" x 2 1/2"
Powered only by DC 9v power Jack (center negative), no batteries option
Expression Jack: external control of the rate, TRS expression jack or 0-5v CV. Compatible with the Broadcast, Broadband and Bandwidth
